Transcend microSDHC 16GB monolith pinout and pin description needed

Moderators: Roman_TS, Maxim_TS, Filipp_TS


procurement
Newbie
Posts: 25
Joined: 05.09.18
Reputation: 0 / (0)

Transcend microSDHC 16GB monolith pinout and pin description needed

Postby procurement » 12.10.19, 10:46

Hello,

I have Transcend microSDHC 16GB monolith, and there is no pin description in pc3000 flash monolith database. If someone has it i will appreciate that

Thank you.


jerema
New user
Posts: 58
Joined: 19.10.16
Reputation: 2 / (24)

Re: Transcend microSDHC 16GB monolith pinout and pin description needed

Postby jerema » 17.10.19, 11:27

It will be helpful , when you post a picture of the layout :-)


procurement
Newbie
Posts: 25
Joined: 05.09.18
Reputation: 0 / (0)

Re: Transcend microSDHC 16GB monolith pinout and pin description needed

Postby procurement » 17.10.19, 12:10

this is the layout


procurement
Newbie
Posts: 25
Joined: 05.09.18
Reputation: 0 / (0)

Re: Transcend microSDHC 16GB monolith pinout and pin description needed

Postby procurement » 17.10.19, 12:11

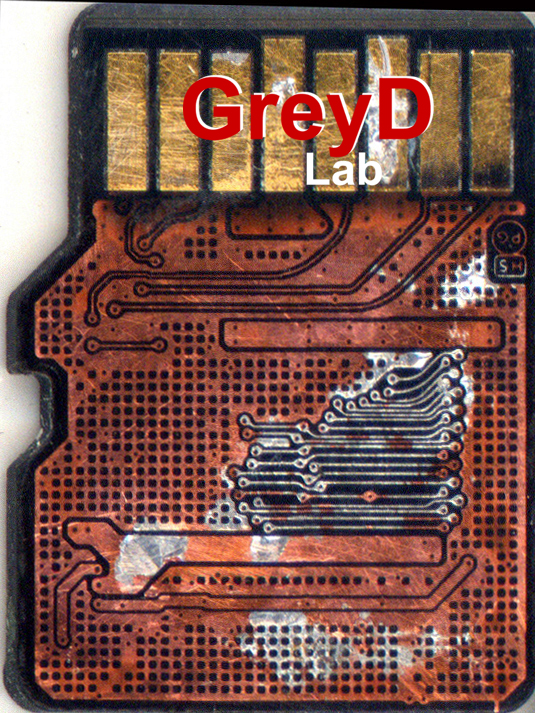

his is the layout
Attachments


jerema
New user
Posts: 58
Joined: 19.10.16
Reputation: 2 / (24)

Re: Transcend microSDHC 16GB monolith pinout and pin description needed

Postby jerema » 18.10.19, 10:06

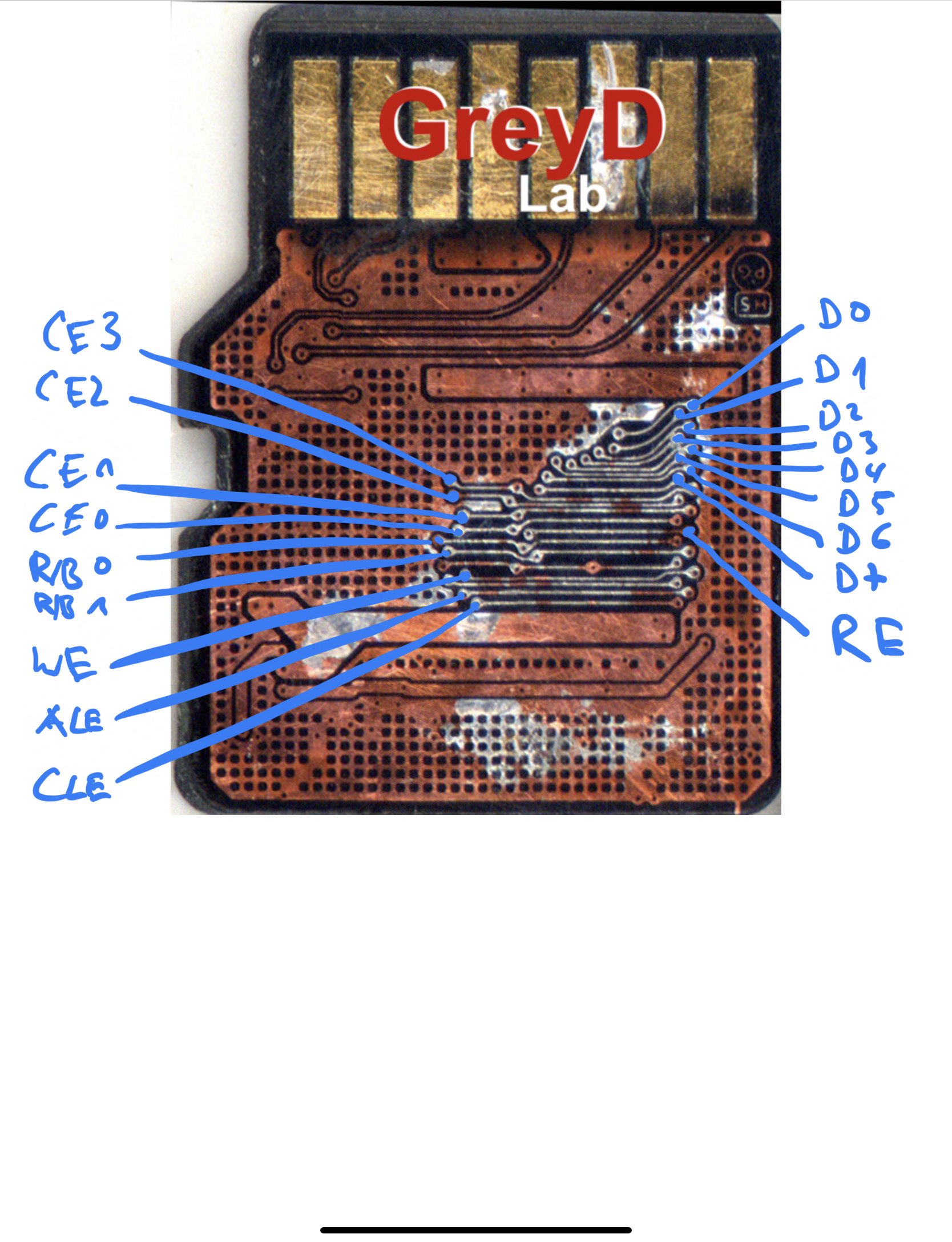

I marked in your picture. Try this, maybee it works.
Attachments
