ST3000DM001

Posted: 09.04.19, 18:37
by pclab
Hey guys

I'm struggling with a ST3000DM001 here..

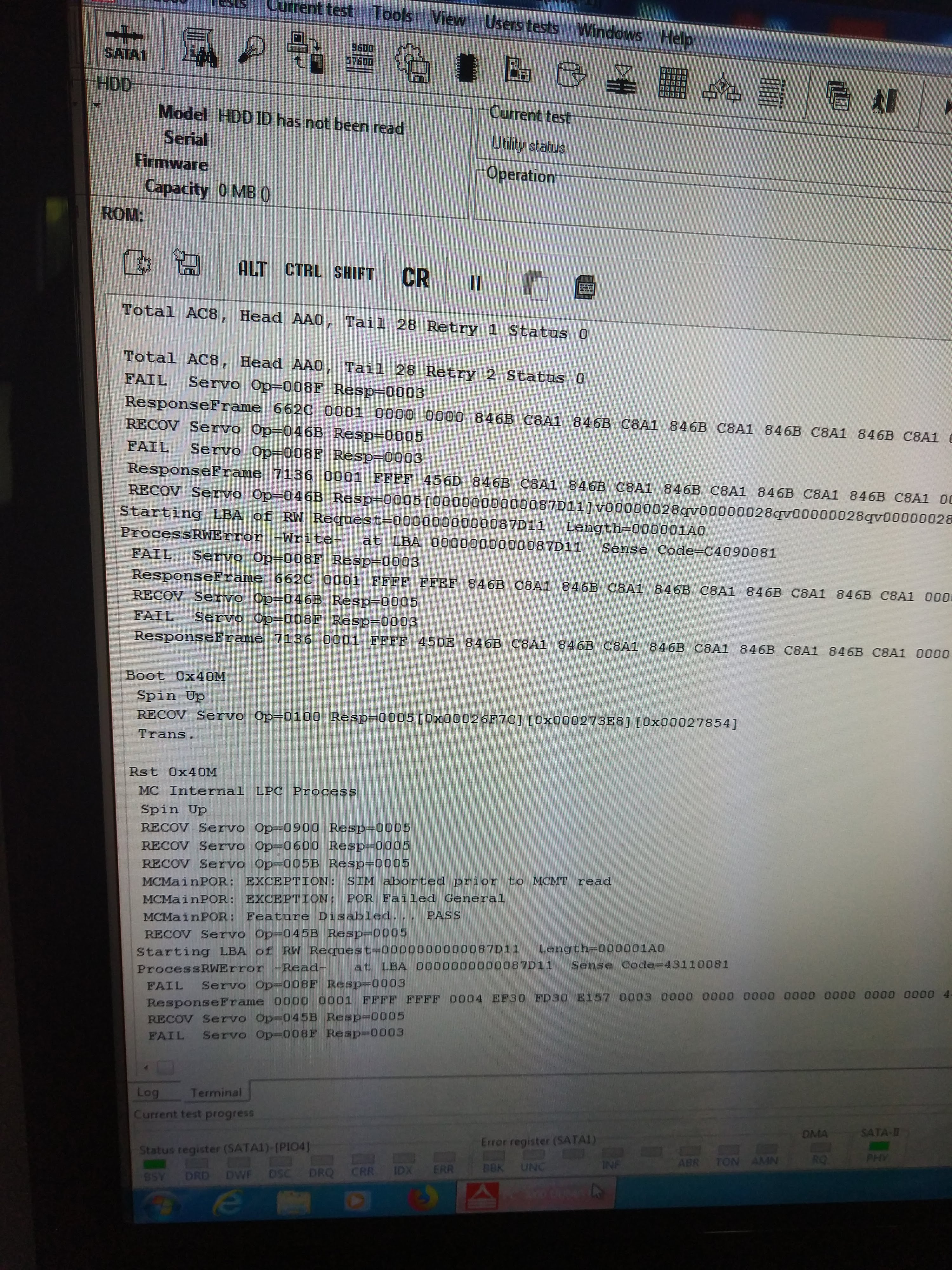

I have swapped heads on it (same preamp), but I get this log.
I checked heads under microscope and they don't show any dust.
I swapped heads back again to donor and it seems that head 3 (at least that one) failed. If I do a SAP change to use 0,1,2, the drive ID's fine (the donor).
I tried also to import head adaptives, but same thing.

What do you guys think? Media damage? Or some kind of FW problem?
The only thing I haven't tested was the PCB, since I don't have an exact match and the PCB from donor is different.

Thanks
Attachments
Log Grenada.txt
(56.32 KiB) Downloaded 146 times

Re: ST3000DM001

Posted: 09.04.19, 19:49
by Doomer
Translator was not read, you'd have to fix it later
Drive is busy walking through MC and marking bad sectors, wait until it stops doing so (could take hours)
Also you saying that H3 is bad, that could mean the drive is developing MD, make sure you address this issue before you let the drive parse MC

Re: ST3000DM001

Posted: 09.04.19, 19:52
by pclab
Hi @Doomer

So, I should let it run and see what happens?
Thanks

Re: ST3000DM001

Posted: 09.04.19, 19:55
by Doomer
pclab wrote:Source of the post Hi Doomer

So, I should let it run and see what happens?
Thanks

you need to make sure there is no MD on H3, if there is - cut the head
after that, yes, let it run
very possible it would show No Host FIS error, because translator was not read, fix the translator(assuming heads can write) and drive should come ready if there are no more surprises

Re: ST3000DM001

Posted: 09.04.19, 19:57
by pclab
Thanks Doomer

I will try tomorrow, since I don't want to leave it during the night without babysitting eheheheh

Re: ST3000DM001

Posted: 10.04.19, 18:46
by pclab
Hi again @doomer

So, I left it work until it stops. After getting to the end it stays BSY and nothing else on terminal.
Here's the log.
PS: I tried 2 times to power on/off.

Thanks
Attachments
Grenada Log.txt
(551.03 KiB) Downloaded 128 times

Re: ST3000DM001

Posted: 10.04.19, 19:02
by Doomer
Log really looks incomplete to me
Are you sure drive does not do anything after this, maybe wait some more?

Re: ST3000DM001

Posted: 10.04.19, 19:32
by pclab
It continues ON, but BSY.
Attachments

Re: ST3000DM001

Posted: 11.04.19, 09:28
by pclab
So I left it on during the night.
Now it keeps spitting this out:
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F5D]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F5E]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F5F]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F60]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F61]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F62]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F63]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F64]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F65]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F66]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F67]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F68]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F69]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F6A]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F6B]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F6C]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F6D]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F6E]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F6F]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F70]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F71]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F72]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F73]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F74]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F75]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F76]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F77]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F78]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F79]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F7A]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F7B]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F7C]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F7D]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F7E]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F7F]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F80]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F81]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F82]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F83]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F84]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F85]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F86]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F87]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F88]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F89]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F8A]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F8B]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F8C]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F8D]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F8E]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F8F]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F90]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F91]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F92]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F93]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F94]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
RECOV Servo Op=006B Resp=0005
RECOV Servo Op=056B Resp=0005[000000002BC10F95]v00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008qv00000008q
