Samsung ST1000LM025 USB TO SATA

Postby huangmiaofang » 21.07.16, 13:40

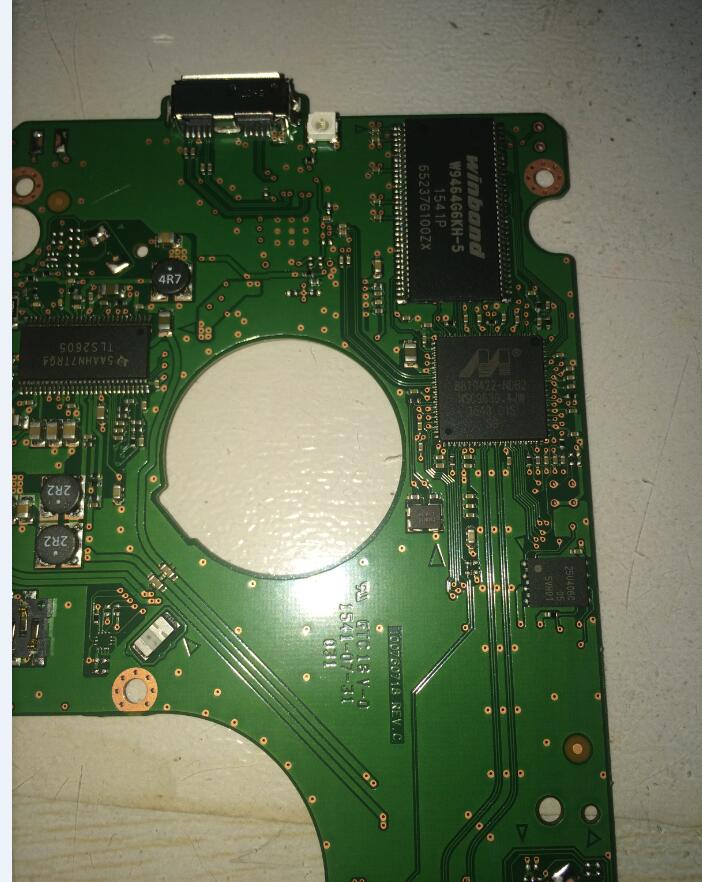

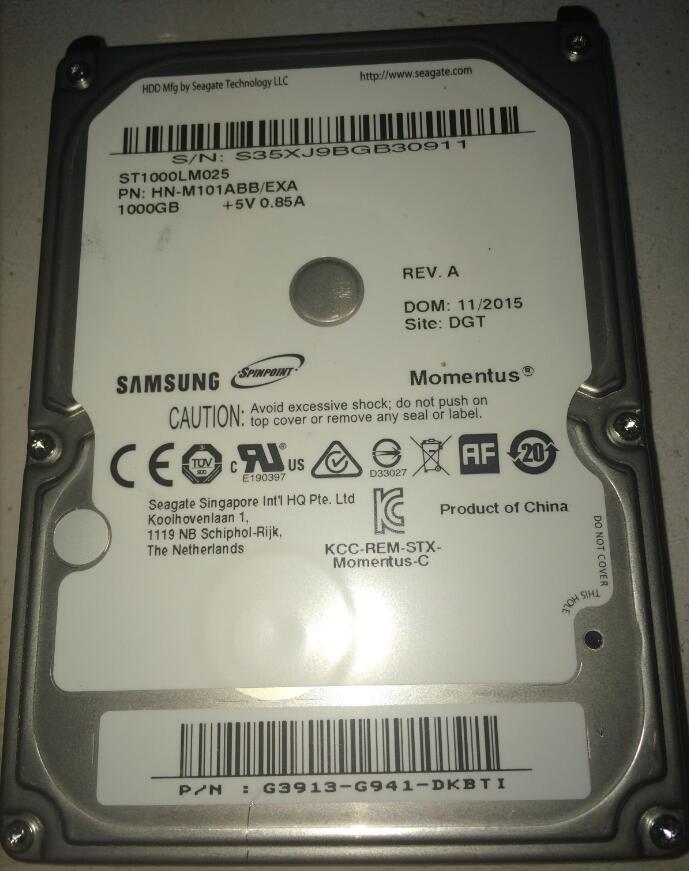

Model ST1000LM025 PN:/HN-M101ABB/EXA
CPU :88I9422-NDB2
USB Chip: JMS577

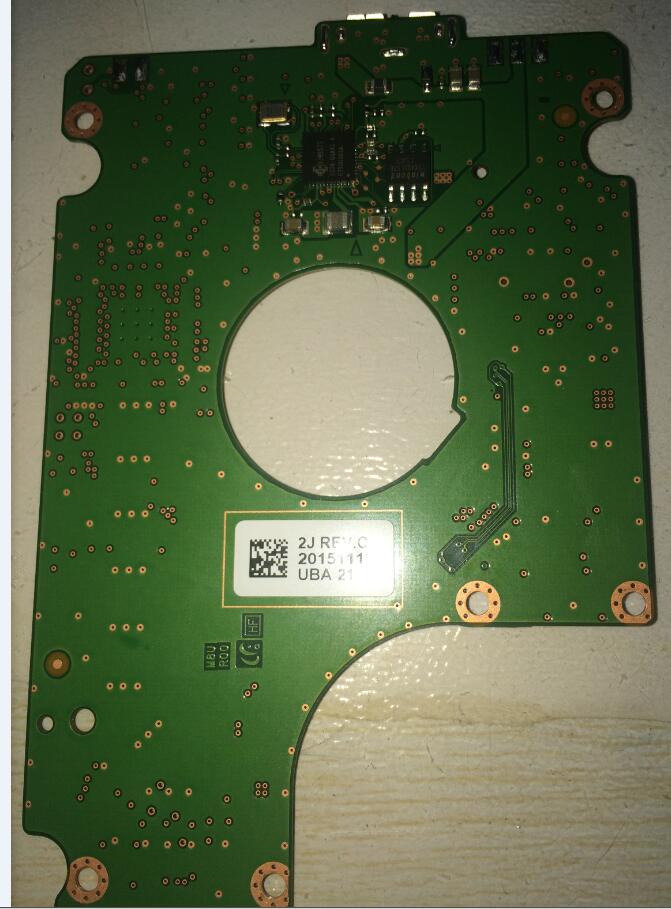

PCB Info :100760718 rev.c

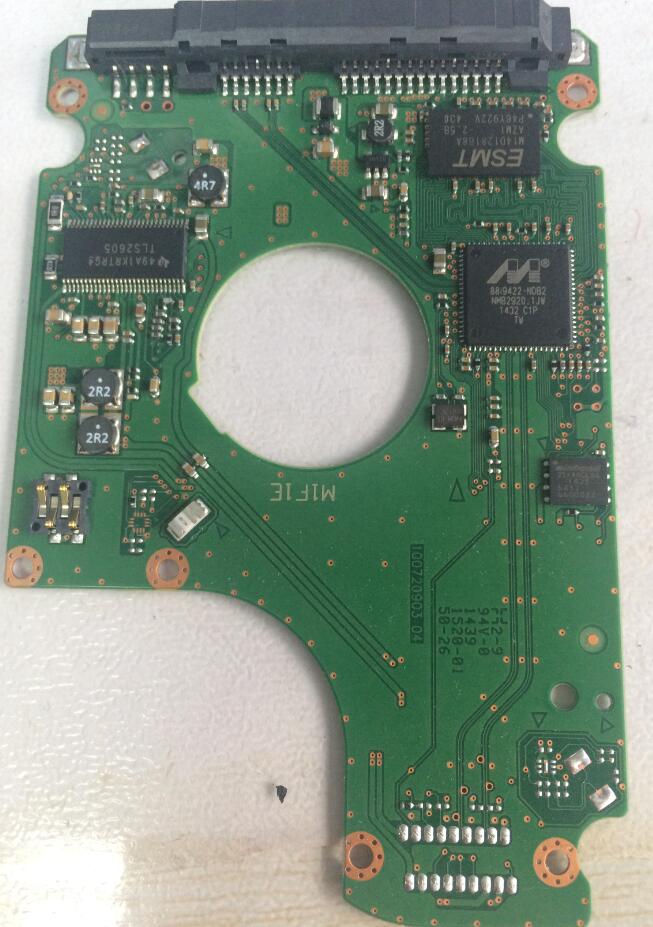

replace to sata

CPU:88I9422-NDB2

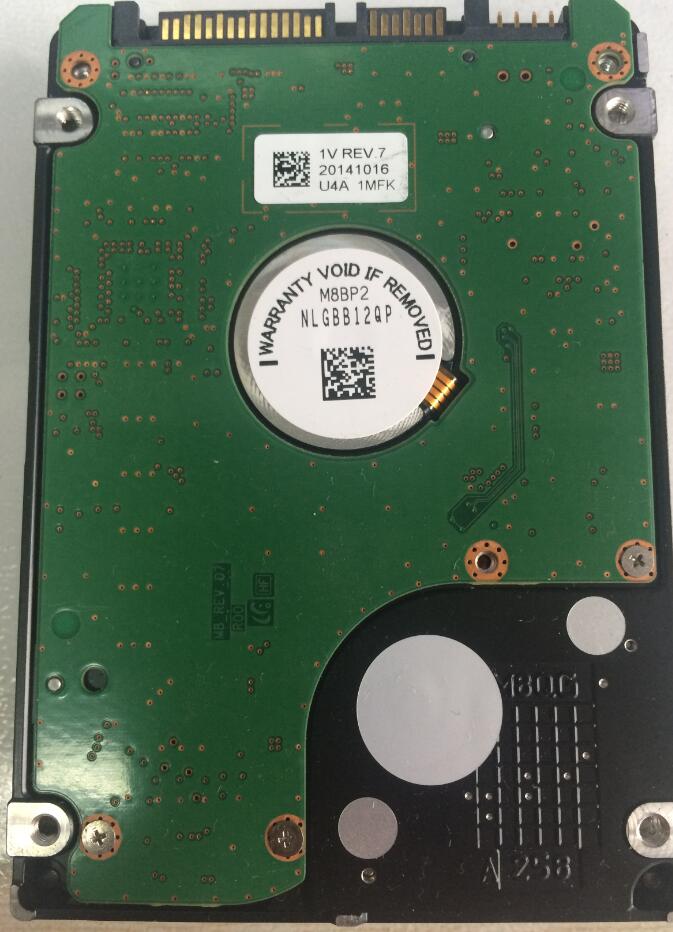

PCB info : 100720903 04 PCB label Rev.7
Attachments
ST1000LM025


huangmiaofang
Newbie
Posts: 19
Joined: 18.07.15
Reputation: 1 / (8)

Re: Samsung ST1000LM025 USB TO SATA

Postby huangmiaofang » 21.07.16, 13:51

USB to sata control image
Attachments
sata1 .jpg
sata1 .jpg (83.82 KiB) Viewed 4647 times

User avatar
Amarbir[CDR-Labs]
Advanced user
Posts: 684
Joined: 03.08.09
Reputation: 7 / (67)

Re: Samsung ST1000LM025 USB TO SATA

Postby Amarbir[CDR-Labs] » 21.07.16, 18:12

Hi,
What Kinda Post Is this Are You Explaining Us that you did this and sharing or you have a question
Regards
Amarbir S Dhillon ,CDR Labs [ Chandigarh ,India ]
DataRecovery - The Affordable Way In India
Visit - > http://www.chandigarhdatarecovery.com My Facebook - > https://www.facebook.com/chandigarhdatarecovery


lcoughey
New user
Posts: 170
Joined: 12.01.12
Reputation: 5 / (54)

Re: Samsung ST1000LM025 USB TO SATA

Postby lcoughey » 21.07.16, 19:50

It does make you wonder what the point of the post is, doesn't it? Perhaps they want to know which chip needs to be transplanted from the USB to make the SATA PCB compatible.

User avatar
Amarbir[CDR-Labs]
Advanced user
Posts: 684
Joined: 03.08.09
Reputation: 7 / (67)

Re: Samsung ST1000LM025 USB TO SATA

Postby Amarbir[CDR-Labs] » 21.07.16, 19:58

lcoughey wrote:Source of the post It does make you wonder what the point of the post is, doesn't it? Perhaps they want to know which chip needs to be transplanted from the USB to make the SATA PCB compatible.


Well Luke Sir ,
He did Not Ask For This Also Hence i Am Wondering
Regards
Amarbir S Dhillon ,CDR Labs [ Chandigarh ,India ]
DataRecovery - The Affordable Way In India
Visit - > http://www.chandigarhdatarecovery.com My Facebook - > https://www.facebook.com/chandigarhdatarecovery


huangmiaofang
Newbie
Posts: 19
Joined: 18.07.15
Reputation: 1 / (8)

Re: Samsung ST1000LM025 USB TO SATA

Postby huangmiaofang » 22.07.16, 02:41

hi,
I have no other meaning, just describe this 2 board is replaced, the problem has been resolved!
