SAMSUNG ST500LM016

Postby geosou » 01.10.15, 13:04

How Can I solder the SATA adapter on a SAMSUNG ST500LM016, HN-M500XBB

Best regards


AJ2008
Posts: 1330
Joined: 25.11.08
Reputation: 10 / (104)

Re: SAMSUNG ST500LM016

Postby AJ2008 » 01.10.15, 13:55

USE pcb from HN-M500MBB


geosou
Newbie
Posts: 4
Joined: 30.01.14
Reputation: 0 / (3)

Re: SAMSUNG ST500LM016

Postby geosou » 18.10.15, 01:02

Thank you for your reply AJ2008 i will try that

User avatar
Garry_TS
Site Admin
Posts: 36
Joined: 06.05.14
Reputation: 4 / (35)

Re: SAMSUNG ST500LM016

Postby Garry_TS » 24.11.15, 23:48

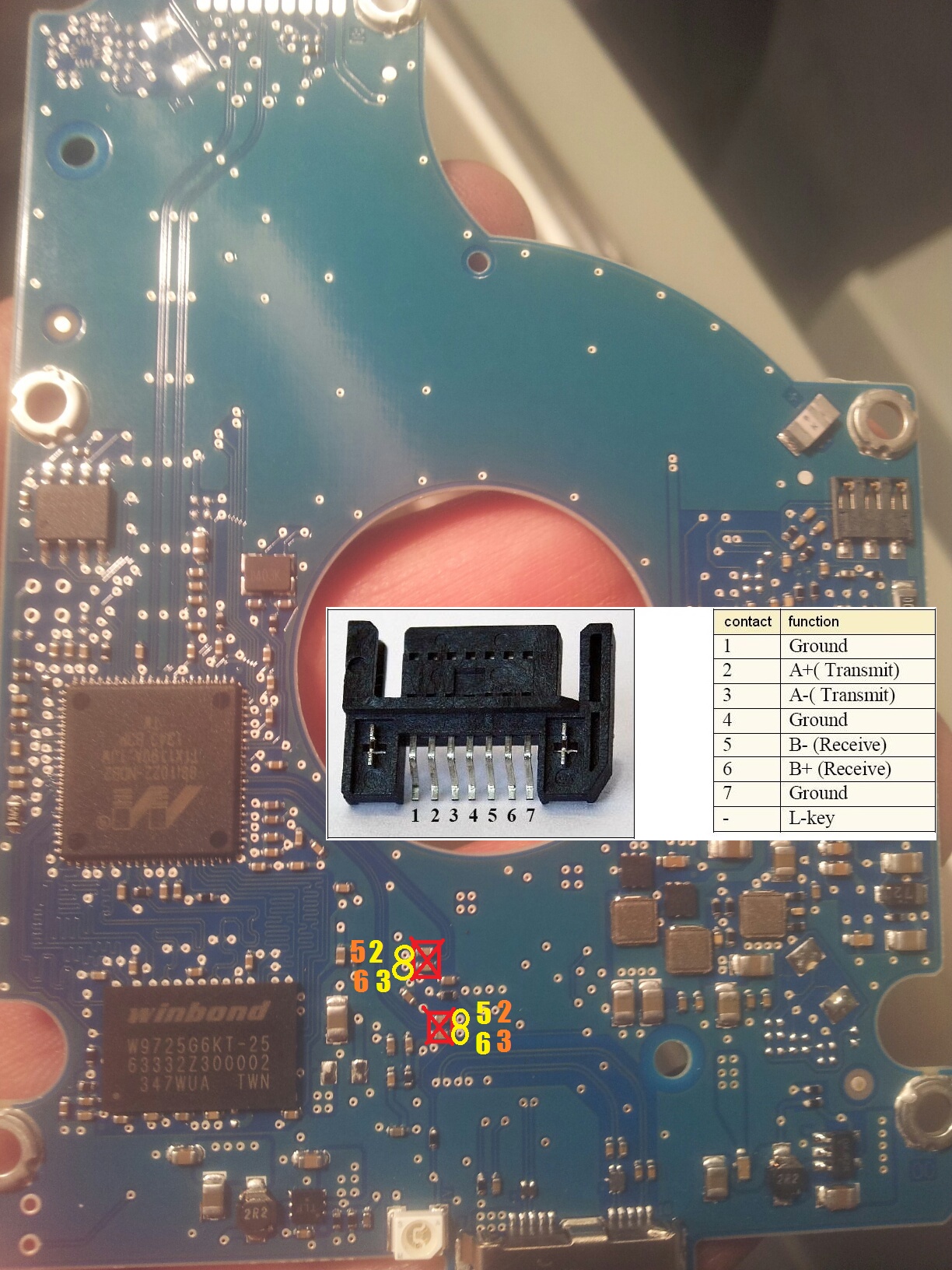

You have to find two differential paired PCB traces that are comming from USB bridge to main IC and unsolder 4 capacitors.
Same way like in ST2000LM005.

As alternative you can use any SATA PCB from same family with same processor.
