PM851 Samsung need pin Tx and Receive pin

Postby jinarto » 16.01.16, 13:26

hello all,
where i can connect RxD and TxD signal for terminal on Samsung MZ7TE512HMHP 2.5" SATA PM851 Family ?

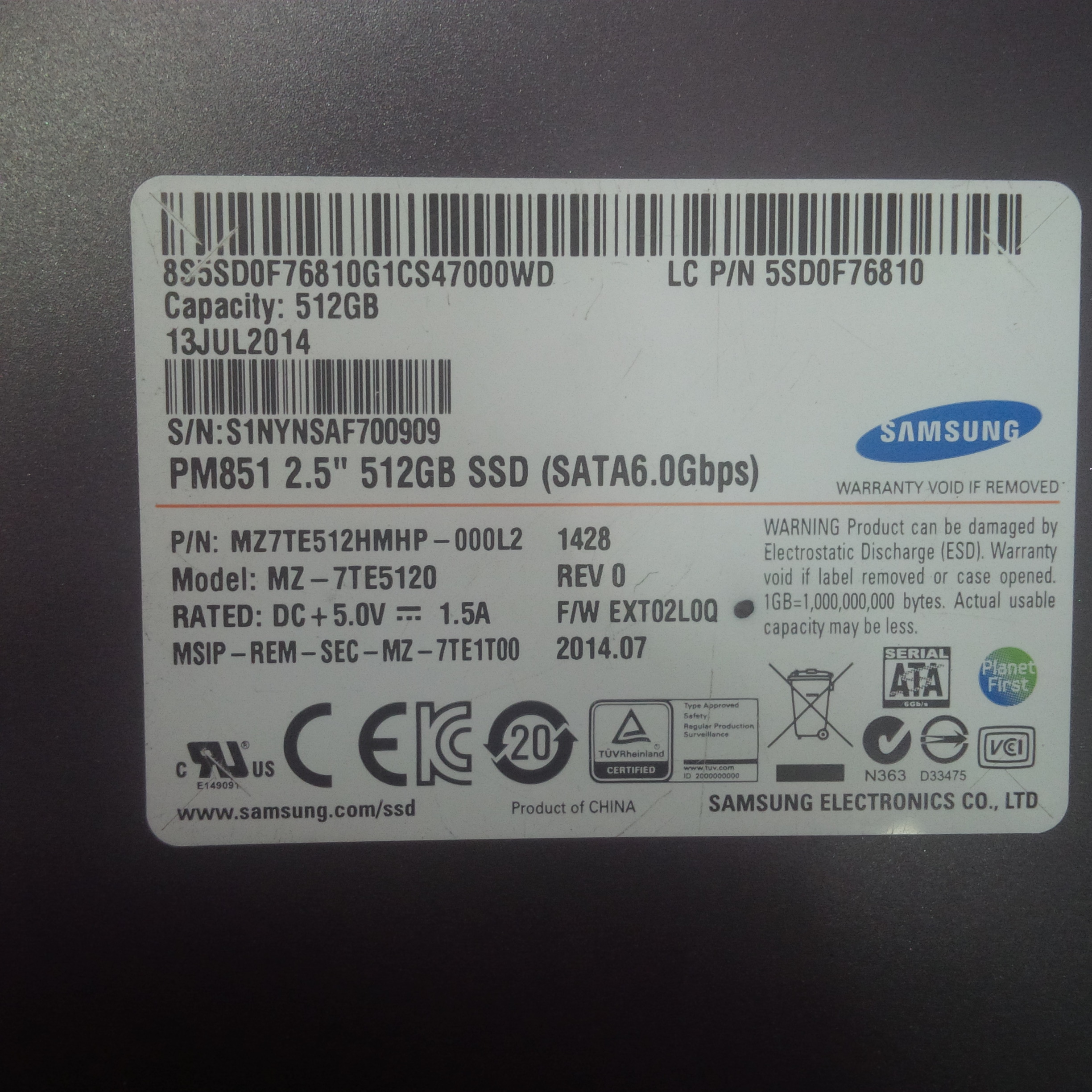

Attachments
Thanks :D ,
Jinarto

User avatar
Roman_TS
Site Admin
Posts: 451
Joined: 09.02.11
Reputation: 19 / (191)

Re: PM851 Samsung need pin Tx and Receive pin

Postby Roman_TS » 16.01.16, 13:34

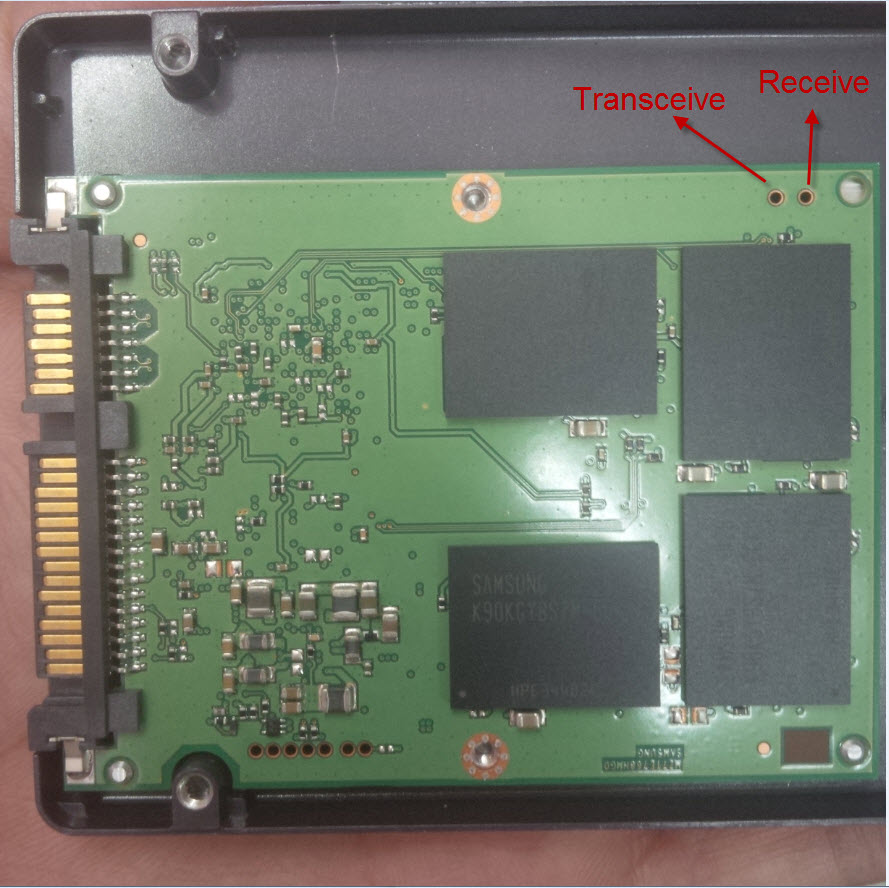

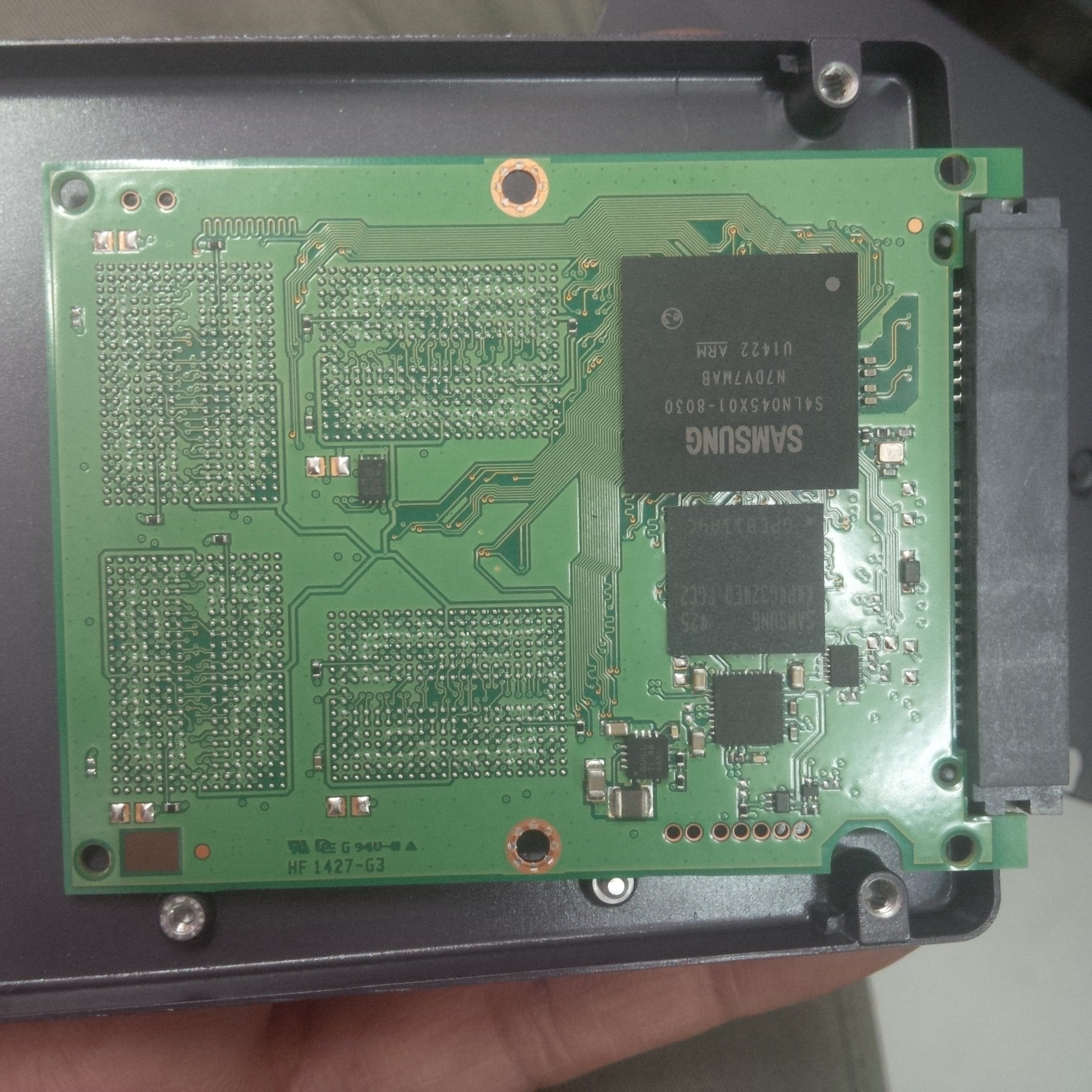

Hello! Those two pins in the top of the board are the pins for terminal connection.
With best regards
ACELab technical support
ts.acelaboratory.com
blog.acelaboratory.com

User avatar
jinarto
Newbie
Posts: 21
Joined: 17.03.15
Reputation: 2 / (16)

Re: PM851 Samsung need pin Tx and Receive pin

Postby jinarto » 17.01.16, 10:18

yes Mr. Roman.
which is TX and which is Rx pin ?

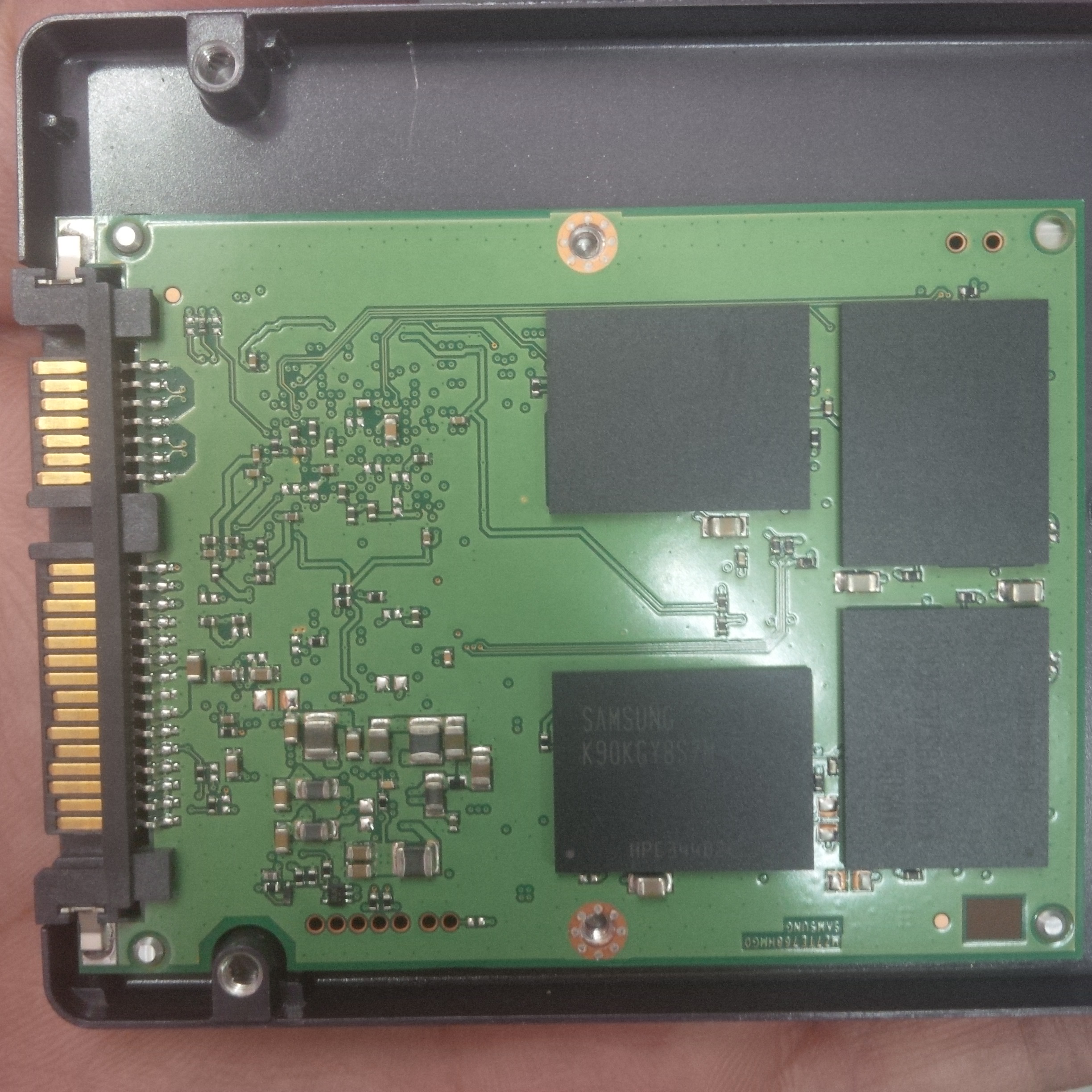

i show you in this attachment pic. if i wrong please correction. ok ?
Attachments
Thanks :D ,
Jinarto

User avatar
Roman_TS
Site Admin
Posts: 451
Joined: 09.02.11
Reputation: 19 / (191)

Re: PM851 Samsung need pin Tx and Receive pin

Postby Roman_TS » 18.01.16, 12:27

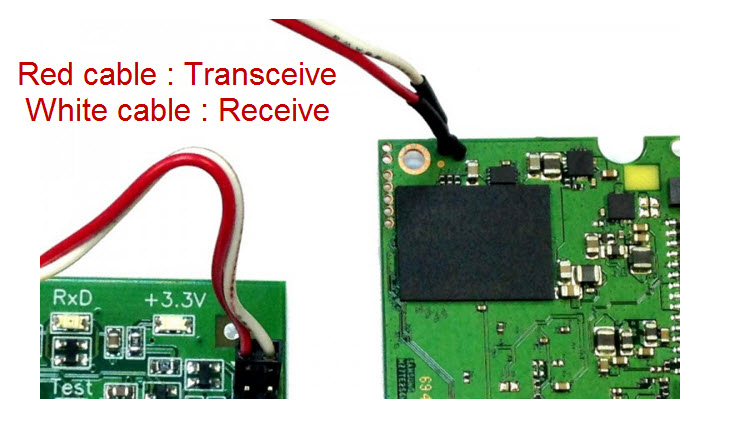

Need to check it by yourself. Try both combinations. In Samsung Utility, should be a picture with correct PIN placement.
With best regards
ACELab technical support
ts.acelaboratory.com
blog.acelaboratory.com

User avatar
jinarto
Newbie
Posts: 21
Joined: 17.03.15
Reputation: 2 / (16)

Re: PM851 Samsung need pin Tx and Receive pin

Postby jinarto » 18.01.16, 19:48

hi Mr. Roman,

it need to check it by myself about which TX and which is Receive side ? how if i wrong rx and tx side. what happen if wrong side?
Thanks :D ,
Jinarto

User avatar
Roman_TS
Site Admin
Posts: 451
Joined: 09.02.11
Reputation: 19 / (191)

Re: PM851 Samsung need pin Tx and Receive pin

Postby Roman_TS » 18.01.16, 19:59

Nothing will happend. If you will connect terminal wrongly - SSD will not detect terminal.
With best regards
ACELab technical support
ts.acelaboratory.com
blog.acelaboratory.com

User avatar
Roman_TS
Site Admin
Posts: 451
Joined: 09.02.11
Reputation: 19 / (191)

Re: PM851 Samsung need pin Tx and Receive pin

Postby Roman_TS » 19.01.16, 17:20

Case is recovered in ACE Lab TS :)
With best regards
ACELab technical support
ts.acelaboratory.com
blog.acelaboratory.com

User avatar
jinarto
Newbie
Posts: 21
Joined: 17.03.15
Reputation: 2 / (16)

Re: PM851 Samsung need pin Tx and Receive pin

Postby jinarto » 21.01.16, 07:09

hello Mr. Roman.

o yes, thanks very much for you and for your good tool to recover this case.

another problem. how to low level format this pm851 ?
in terminal appear these :
Selected family......................... : Samsung 840 EVO series
Controller.............................. : S4LN045X01-8030

Techno mode key......................... : Techno mode error; unexpected error: Device error detected - Device error detected - Device error detected - Device error detected

SSD status:
SSD is in ready state................... : Yes
SSD is locked........................... : No
SSD is in Safe Mode..................... : Yes
Loader uploaded......................... : No
Logical access is possible.............. : No
Physical access is possible............. : No

Loader uploading
****************************************
Code name............................... : 840EVO.ldr

Write HDD microcode
Waiting 2 sec.
Ready state waiting..................... : Ok
Write Main Firmware..................... : Ok

SSD status:
SSD is in ready state................... : Yes
SSD is locked........................... : No
SSD is in Safe Mode..................... : No
Loader uploaded......................... : Yes
Logical access is possible.............. : No
Physical access is possible............. : Possibly
****************************************

Reading password information............ : Ok
USER password........................... : No

Command execution is not possible because of logical access is not available!

i have been plug Tx and Rx.
Thanks :D ,
Jinarto

User avatar
Roman_TS
Site Admin
Posts: 451
Joined: 09.02.11
Reputation: 19 / (191)

Re: PM851 Samsung need pin Tx and Receive pin

Postby Roman_TS » 21.01.16, 11:54

Firmware update with _FORMAT option will allow to erase all user data and restore SA to default settings.
With best regards
ACELab technical support
ts.acelaboratory.com
blog.acelaboratory.com

User avatar
jinarto
Newbie
Posts: 21
Joined: 17.03.15
Reputation: 2 / (16)

Re: PM851 Samsung need pin Tx and Receive pin

Postby jinarto » 24.01.16, 13:32

Yes. You r right. you make this ssd pm851 be new again. thx alot for you and pc-3000 ssd
Thanks :D ,
Jinarto
