Which pinout to use for this micro SD-card

Postby edbrandt » 13.07.17, 14:16

Hello

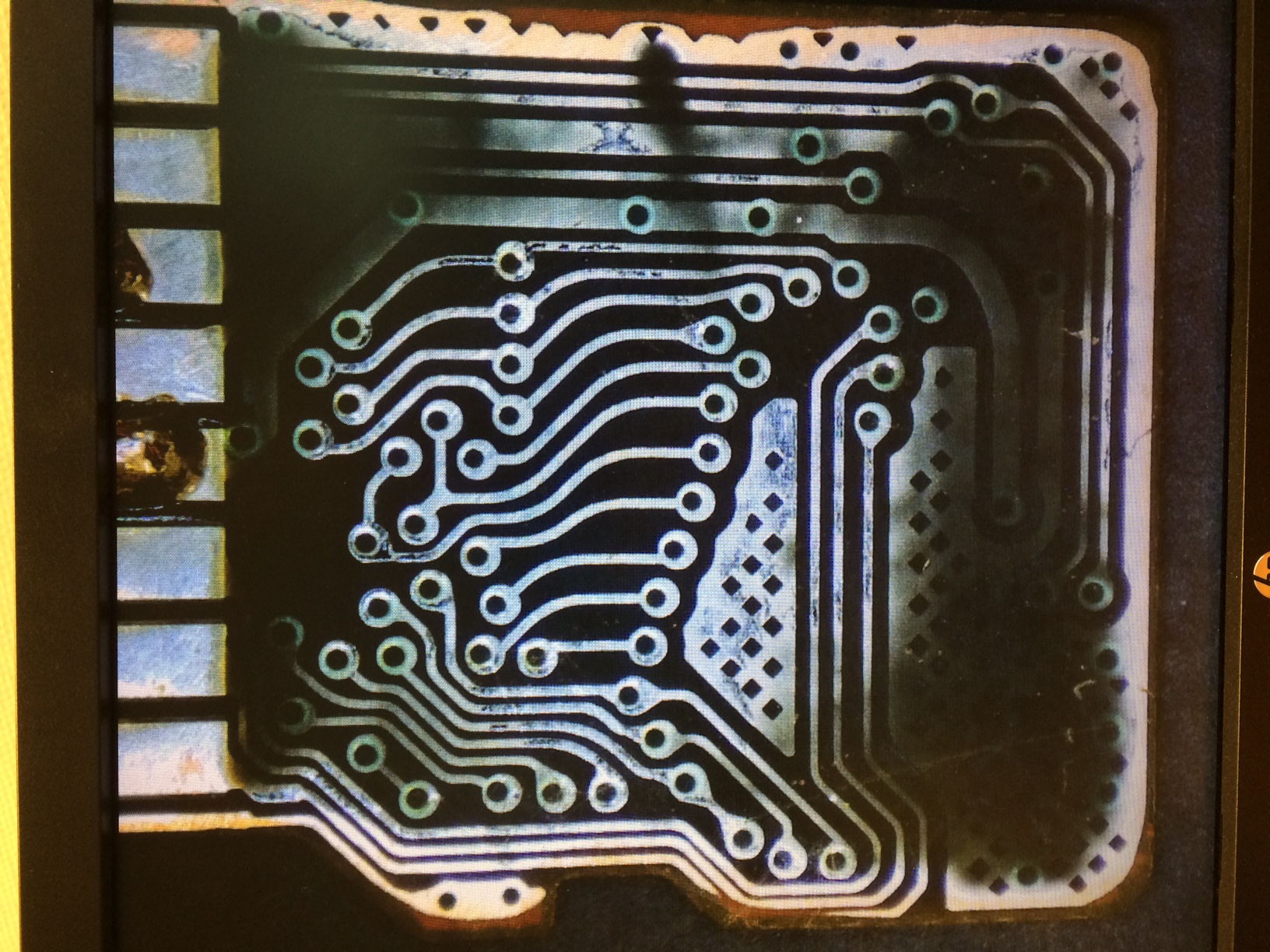

Can anyone help me determine the correct pinout for this card.
Can't find it in the database.



It's a 2GB micro SD, marked AOUTDY411TW

Thank you

-Espen

User avatar
recuperodatos.com
Newbie
Posts: 10
Joined: 19.11.15
Reputation: 0 / (3)

Re: Which pinout to use for this micro SD-card

Postby recuperodatos.com » 28.10.19, 17:43

Hello ,

Do you still working with this chip? We can help you with find the pinout and the information inside.
Please let me know if you are interested.

Thanks and regards,
Franco
