HTS723232A7A364 how to connect COM line?

Postby henry » 21.01.13, 11:39

Dear all,
I have a Model for HTS723232A7A364 thin hdd, hard disk PCB no joint COM line of the port, the hdd how to connect COM line?

Have a nice day !
Attachments

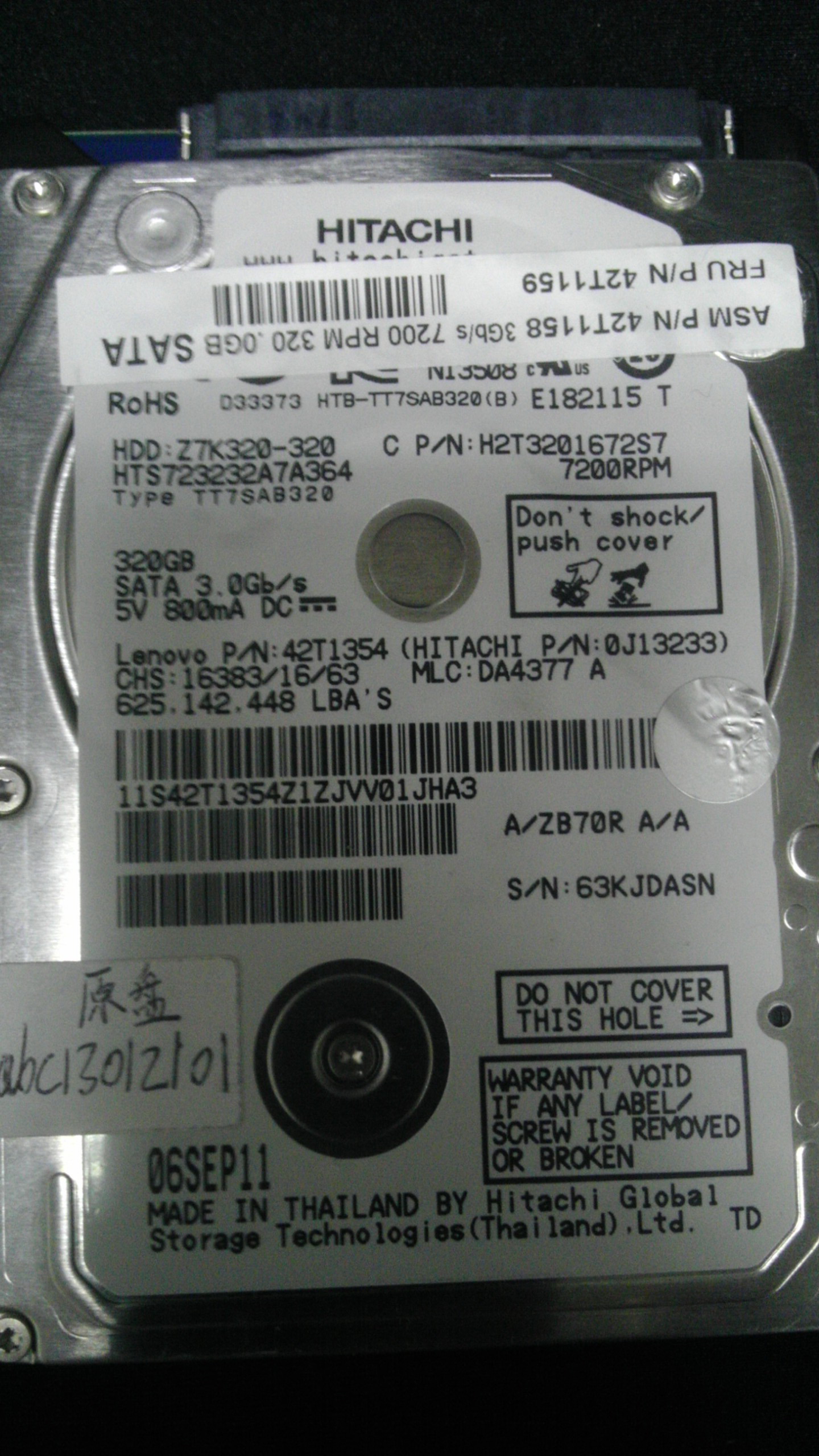

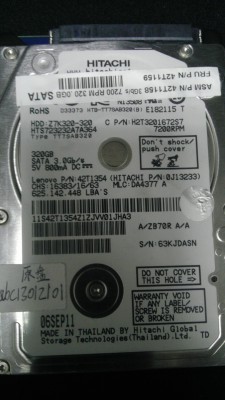

hit 320G.jpg
hit 320G.jpg (27.56 KiB) Viewed 6311 times
Last edited by henry on 21.01.13, 12:18, edited 2 times in total.


henry
Newbie
Posts: 13
Joined: 03.09.12
Reputation: 0 / (0)

Re: HTS723232A7A364 how to connect COM line?

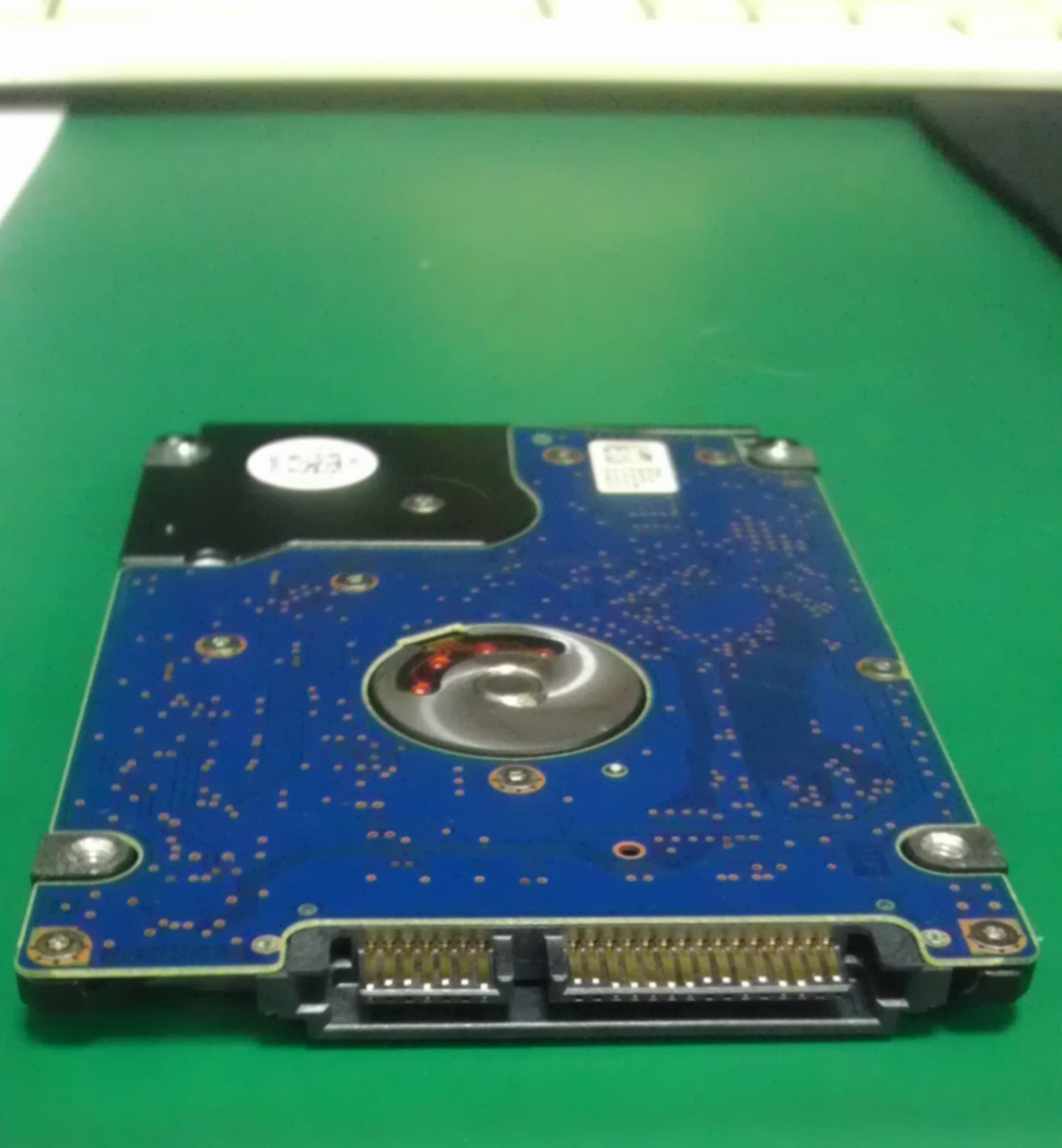

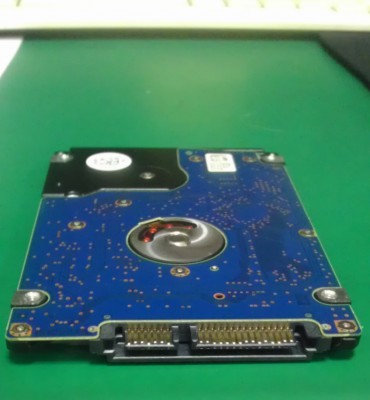

Postby henry » 21.01.13, 12:02

Attachments

User avatar
300ddr
User
Posts: 233
Joined: 18.01.12
Reputation: 3 / (28)

Re: HTS723232A7A364 how to connect COM line?

Postby 300ddr » 21.01.13, 22:16

There is no terminal connection for Hitachi drives.


thatdellguy
New user
Posts: 62
Joined: 31.08.12
Reputation: 3 / (30)

Re: HTS723232A7A364 how to connect COM line?

Postby thatdellguy » 22.01.13, 08:39

300ddr wrote:There is no terminal connection for Hitachi drives.

http://forum.hddguru.com/terminal-com-f ... t5343.html


henry
Newbie
Posts: 13
Joined: 03.09.12
Reputation: 0 / (0)

Re: HTS723232A7A364 how to connect COM line?

Postby henry » 22.01.13, 10:54

Thanks for the reply , the new version UDMA 5.23 tip hard disk need COM terminal connection, no connection cannot enter UDMA work mode


AJ2008
Posts: 1330
Joined: 25.11.08
Reputation: 10 / (104)

Re: HTS723232A7A364 how to connect COM line?

Postby AJ2008 » 01.07.13, 14:36

Terminal is present on native Hitachi, before they purchase IBM HDD division. After this takeover, no terminal is present.

For this series. no access via serial is possible
