wd20nmvw-11av3s2 Rom Transfer from usb pcb to Donor pcb

Postby Paulfromsurrey » 30.12.18, 03:55

I have Hard disk wd20nmvw-11av3s2 and I like to Transfer Rom from usb pcb to Donor pcb


I believe this drive has slow response issue so planing to change from usb pcb to sata

so i am looking for any documentation can help me to transfer the rom from this 2060-771961-001 rev A TO 2060-771960-000-REV A

This 2060-771961-001 has 12 pins so i like to know how we can setup com connection

how i can transfer rom information from one pcb to other pcb

Thanks

User avatar
digitalsupport
New user
Posts: 85
Joined: 30.12.11
Reputation: 3 / (31)

Re: wd20nmvw-11av3s2 Rom Transfer from usb pcb to Donor pcb

Postby digitalsupport » 30.12.18, 11:32

How to make a Com connection is right here https://forum.acelaboratory.com/viewtop ... 155&t=7397
How to transfer via Boot ROM mode you will find here: https://blog.acelaboratory.com/boot-rom ... rives.html


Paulfromsurrey
Newbie
Posts: 11
Joined: 18.06.18
Reputation: 0 / (0)

Re: wd20nmvw-11av3s2 Rom Transfer from usb pcb to Donor pcb

Postby Paulfromsurrey » 31.12.18, 01:31

Thank you Digital but the problem is in this model

there are two rows of 6 pins

not sure where the com connection should be connected which adapter is good to use

User avatar
Blizzard
New user
Posts: 82
Joined: 29.06.16
Reputation: 4 / (43)

Re: wd20nmvw-11av3s2 Rom Transfer from usb pcb to Donor pcb

Postby Blizzard » 31.12.18, 19:44

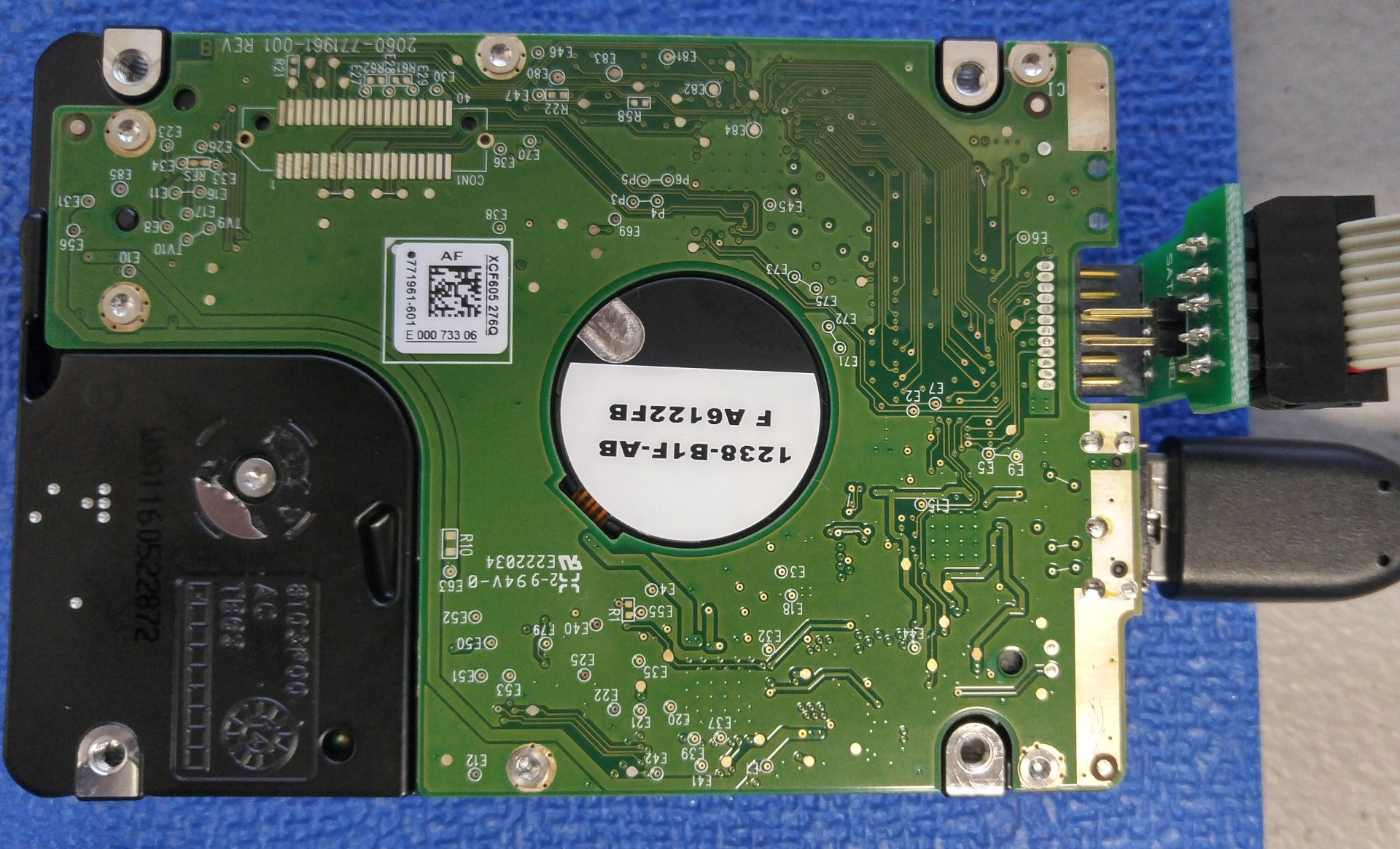

You can use the WD 2.5 adapter. (see photo for connection)



Paulfromsurrey
Newbie
Posts: 11
Joined: 18.06.18
Reputation: 0 / (0)

Re: wd20nmvw-11av3s2 Rom Transfer from usb pcb to Donor pcb

Postby Paulfromsurrey » 09.01.19, 18:58

Thank you Blizzard
